Trek
Price €3.299,00
Available colours
Battery options
Frame shape
DiamondLease this bike through your employer. Calculate the lease price per month
€
€
Please note: the stated lease and sales prices are indicative. The sales price of the (web)shop is leading for the final lease price.
Costs per month from

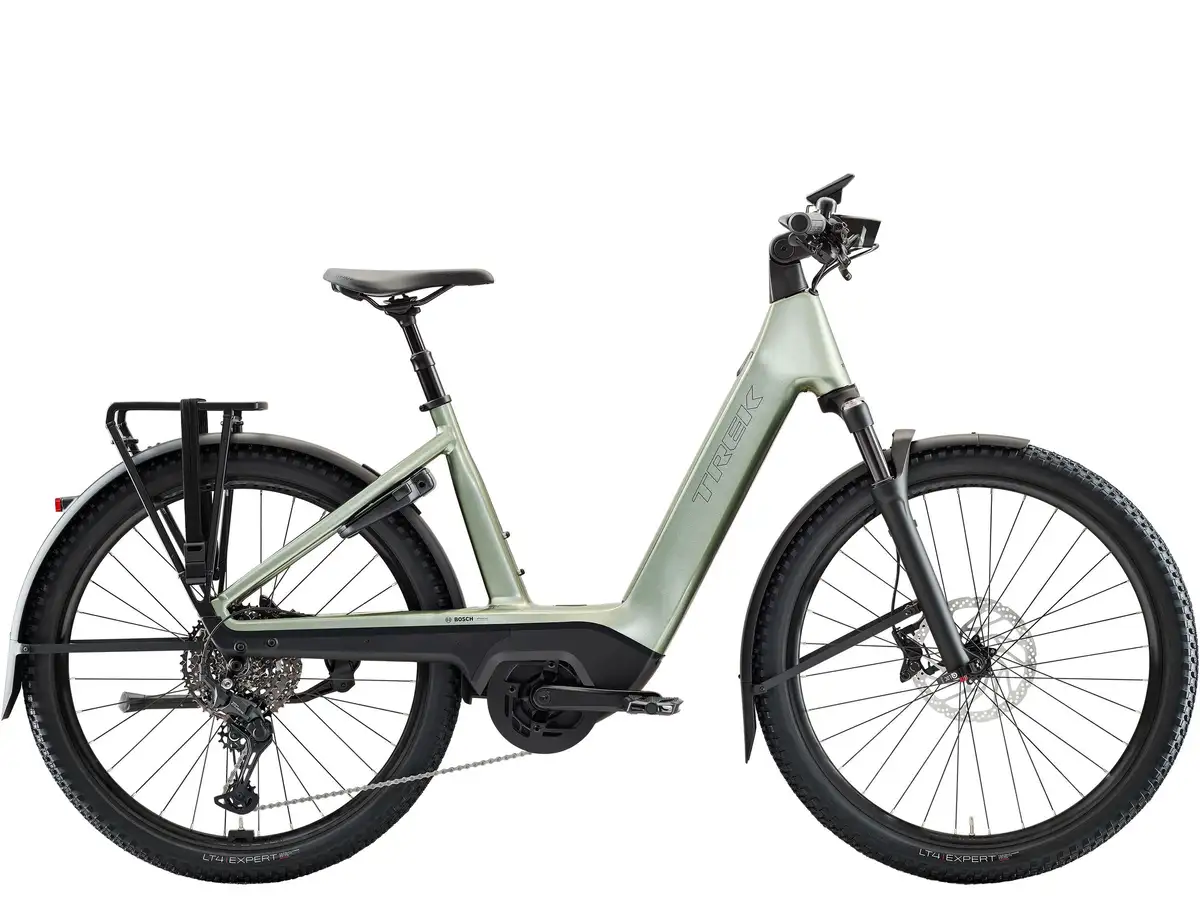

Charter+ 4 Trail 540Wh Lowstep specifications
+−
In general
Model year
2027
Rear wheel size
27.5
Front wheel size
27.5
Fork
Fork brand
Suntour
Fork model
SR Suntour XCR32, tapered steerer tube, coil spring, preload adjuster, lockout,100mm QR, 80mm travel
Stem
Stem brand
Bontrager
Stem model
Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
Chain
Chain brand
Shimano
Chain model
Shimano LG500
Frame
Frame size
59
Frame type
Uni
Frame material
Aluminium
Frame size
XL
Gears
Gear type
Nabeschaltung
Gear brand
Shimano
Gear model
Shimano TC500-HM
Number of gears
1
Tyres
Tyre brand
Bontrager
Tyre model
Bontrager Connection Elite, reflektierender Streifen, Drahtwulstkern, 60 TPI, 27.5 x 2.40
Pedals
Pedals brand
Bontrager
Pedals model
Bontrager City Pedale
Saddle
Saddle brand
Bontrager
Saddle model
Bontrager Commuter Comp
Wheels
Wheels model
Bontrager Kovee, Hohlkammerfelge, Tubeless Ready, 28-Loch, 23 mm Innenweite, Presta-Ventil // Bontrager Kovee, Hohlkammerfelge, Tubeless Ready, 32-Loch, 23 mm Innenweite, Presta-Ventil
Shimano QC300, Centerlock
Shimano TC500-HM
Cassette
Cassette brand
Shimano
Cassette model
Shimano LINKGLIDE LG300, 11-46 Zähne, 9-fach
Crankset
Crankset brand
Prowheel
Crankset model
ProWheel, Aluminium, 170 mm Kurbelarmlänge
Geometry
Trail
9.3
Offset
4.5
Wheelbase
120.8
Head angle
69
Frame reach
45.2
Frame stack
70.8
Top tube length
66.9
Seat tube angle
73
Chainstay length
46.8
Head tube length
20
Seat tube length
59
Stand over height
56.9
Bottom bracket drop
7
Bottom bracket height
29.7
Seatpost
Seatpost brand
Ohne Markenzeichen
Seatpost model
Aluminium, gefedert, 31,6 mm, 300 mm Länge
Handlebar
Handlebar brand
Bontrager
Handlebar model
Bontrager alloy, 31.8mm, 5mm rise, 720 width
Kickstand
Kickstand brand
Pletscher
Kickstand model
Pletscher Comp Flex 40
Mudguards
Mudguards brand
Trek
Mudguards model
Trek Charter Schutzblech aus Aluminium
Front brake
Front brake type
Scheibenbremse mit hydraulischer Steuerung
Front brake brand
Shimano
Front brake model
Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200
Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm
Max. Bremsscheibendu
Front light
Front light model
Trek LED, Rücklicht // Trek LED, Scheinwerfer
Seatpost clamp
Seatpost clamp brand
Ohne Markenzeichen
Seatpost clamp model
Bolt-on, 36,4 mm
Bar tape/Grips
Bar tape/Grips brand
Trek
Bar tape/Grips model
Trek Ergonomic Comp, Schraubklemmung
Rear brake
Rear brake type
Scheibenbremse mit hydraulischer Steuerung
Rear brake brand
Shimano
Rear brake model
Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200
Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm
Max. Bremsscheibendu
E-bike Specifications
+−
In general
E-bike type
Normal
Walk assist
Yes
spec_handle_control
Yes
Drivetrain brand
Bosch
Order without battery
No
Order without charger
No
spec_order_without_display
No
Engine
Engine brand
Bosch
Engine model
Bosch Performance Line, 250 W, 75 Nm, 25 km/h
Charger
Charger brand
Bosch
Charger model
Bosch Standardladegerät 2 A, 230 V, Smart System
Display
Display brand
Bosch
Display model
Bosch Purion 200
spec_operation_type
Lenker (zentral)
