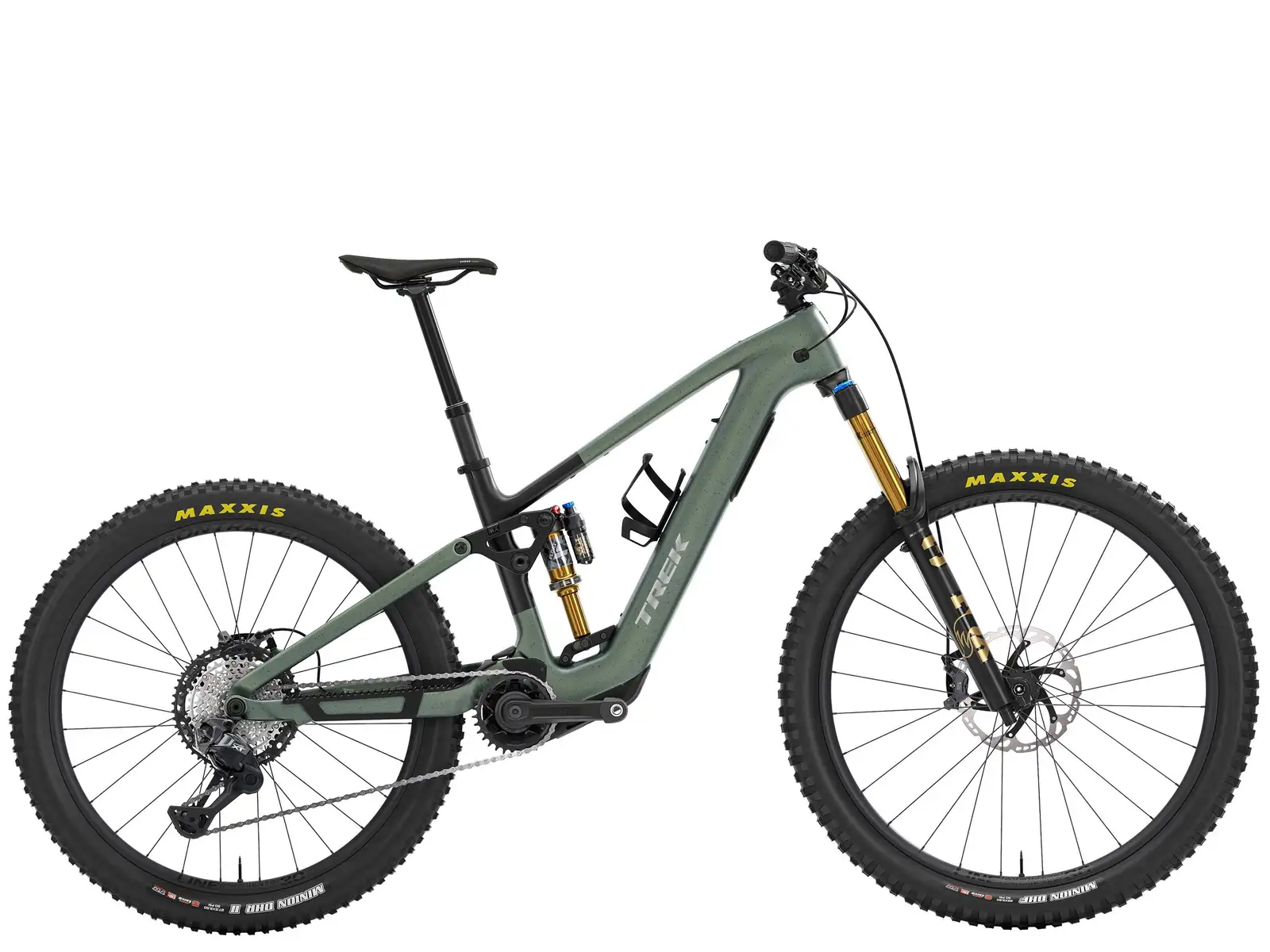

Trek
Price €8.999,00
Available colours
Battery options
Frame shape
DiamondLease this bike through your employer. Calculate the lease price per month
€
€
Please note: the stated lease and sales prices are indicative. The sales price of the (web)shop is leading for the final lease price.
Costs per month from
Specifications
+−
In general
Model year
2027
Rear wheel size
27.5
Front wheel size
27.5
Fork
Fork brand
Fox
Fork model
FOX Factory 36, Float EVOL Luftfeder, GRIP X2 Dämpfung, 44 mm Vorlauf, Boost110, 15 mm Kabolt X Achse, 160 mm Federweg
Stem
Stem brand
Bontrager
Stem model
Bontrager Elite, 35 mm, 0 Grad, 45 mm Länge
Chain
Chain brand
Shimano
Chain model
Shimano Ultegra/XT M8100
Frame
Frame size
46
Frame type
Uni
Frame material
Carbon
Frame size
XL
Gears
Gear type
Kettenschaltung
Gear brand
Shimano
Gear model
Shimano XT Di2 M8260, 12fach
Number of gears
1
Tyres
Tyre brand
Maxxis
Tyre model
Maxxis Assegai, Tubeless-Ready, 3C, EXO+ Karkasse, MaxxGrip, faltbarer Wulstkern, 29 x 2.50 // Maxxis Minion DHR II, Tubeless-Ready, 3C, Double Down, MAXXGRIP, 27.5 x 2.50
Saddle
Saddle brand
Ohne Markenzeichen
Saddle model
Verse Short Comp, Stahlstreben, 145 mm Breite
Wheels
Wheels brand
Bontrager
Wheels model
Bontrager Line Comp 30, Tubeless-Ready, 6-Loch-Scheibenaufnahme, Boost110, 15 mm Steckachse, 29"
Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-Loch-Scheibenaufnahme, SRAM XD Freilaufnabe, Boost148, 12 mm Steckachse, 27,5"
Cassette
Cassette brand
Shimano
Cassette model
Shimano XT M8200, 10-51 Z., 12fach
Crankset
Crankset brand
E*Thirteen
Crankset model
e*thirteen e*spec Plus, 160 mm Kurbelarmlänge
Geometry
Trail
13.2
Offset
4.4
Wheelbase
130.1
Head angle
64.2
Frame reach
50.7
Frame stack
65.4
Top tube length
65.2
Seat tube angle
72.3
Chainstay length
44.4
Head tube length
14
Seat tube length
45.5
Stand over height
75.9
Bottom bracket drop
3.1
Bottom bracket height
34.3
Seatpost
Seatpost brand
Bontrager
Seatpost model
Bontrager Line Dropper, 200 mm Hub, MaxFlow, interne Zugführung, 34,9 mm, 515 mm Länge
Shifters
Shifters brand
Shimano
Shifters model
Shimano XT Di2 M8250, 12fach
Handlebar
Handlebar brand
Ohne Markenzeichen
Handlebar model
Race Face Turbine, Aluminium, 35 mm, 40 mm Rise, 780 mm Breite
Front brake
Front brake type
Scheibenbremse mit hydraulischer Steuerung
Front brake brand
Shimano
Front brake model
Shimano XT M8220 hydraulische 4-Kolben-Scheibenbremse // Shimano XT M8220 hydraulische 4-Kolben-Scheibenbremse
Shimano RT-6B750, 6-Loch, 200 mm
Max. Bremsscheibendu
Rear derailleur
Rear derailleur brand
Shimano
Rear derailleur model
Shimano XT Di2 M8260, 12fach
Bar tape/Grips
Bar tape/Grips brand
Trek
Bar tape/Grips model
Trek Line Elite, Schraubklemmung
Rear brake
Rear brake type
Scheibenbremse mit hydraulischer Steuerung
Rear brake brand
Shimano
Rear brake model
Shimano XT M8220 hydraulische 4-Kolben-Scheibenbremse // Shimano XT M8220 hydraulische 4-Kolben-Scheibenbremse
Shimano RT-6B750, 6-Loch, 200 mm
Max. Bremsscheibendu
E-bike Specifications
+−
In general
E-bike type
Normal
Walk assist
Yes
spec_handle_control
Yes
Order without battery
No
Order without charger
No
spec_order_without_display
No
Engine
Engine model
TQ HPR60, 60 Nm, 250 W max. Nenndauerleistung, 350 W Maximalleistung
Charger
Charger model
TQ Ladegerät, 4 A
Display
Display model
TQ LED-Farbdisplay mit Bluetooth- & ANT+-Konnektivität
spec_operation_type
Lenker (zentral)
